STANDARD COMPLIANCE:

• Security Level:  Medium

• Fire Rating: UL 10B - 1 1/2  Hour

STANDARD FEATURES:

• Latchbolt has full 3/4" throw
• Slam-locking with automatic mechanical deadlock
• Lock status switch indicates deadlocked latchbolt
• Keyed one or two sides
• Cylinder Extension provided for locks keyed stop side or two sides
• Security ring, frame welded
• Stainless steel faceplate furnished with tamper resistant screws
• Strike plate furnished with tamper resistant screws
• Quick connect electrical connector
• Factory wired filed-side pigtail
• Fail-secure (Unlocks when energized)

STANDARD OPERATIONS:

• Latchbolt retracts when momentary signal is applied to the lock and remains retracted for a specified interval, at which time the latchbolt extends allowing door to be closed. Lock automatically deadlocks when door is closed
• Lock Status Switch: Indicates latchbolt is deadlocked
• Key Operated Manual Unlock Feature: Locks are designed to accept a builders hardware key cylinder to allow manual mechanical unlocking of door by key at the lock.
• Fail Secure: Unlocks when energized.

OPTIONAL FEATURES: (all "fail secure" features)

• RLHB - Remote Latch Holdback: Latchbolt is retracted by push button at the control panel and remains retracted until button is pushed a second time (control feature).
• KS - Key Switch: Door is electrically unlocked by key operated switch at the lock.
• KLHB - Key Operated Mechanical Latch Holdback: Latchbolt is retracted locally by key and remains mechanically retracted until relocked by key.
• ELHB - Emergency Latch Holdback: Latchbolt is retracted from a remote location and remains mechanically retracted until relocked at the door by key (Includes KLHB feature)
• RLB - Remote Latch Back: Latchbolt is retracted from a remote location and remains mechanically retracted until door is opened approx. 2". Door relocks automatically when closed.
• UL - Underwriters Laboratories Inc. Label: U.L. approved electrically controlled single point lock for use on swinging firedoors having a rating up to and including 1 1/2 hours.

MANUFACTURED SPECIFICATIONS:

• Body:  All steel construction. Lock dimensions: 1 1/2" x 13 1/4" x 1 3/4"
• Mounting Plate: 3/16", 1018 cold rolled steel, bright zinc plated
• Faceplate: Stainless steel(US32D) with tamper resistant screws
• Latchbolt: High strength alloy steel, hardened to RC 60
• Latchbolt Throw: 3/4" - flush when retracted
• Deadlock Actuator: Plunger-type, 1018 cold rolled steel, hardened to RC60
• Lock Status Switch: 5 amp rated, UL recognized
• Electrical Power Consumption: 36 watt max. at 24VDC, (1.5 amps)
• Operating Range: 24VDC, +25% - 10%
• Motor: 2 phase, bi-polar, brushless linear actuator
• Electrical Connector: Quick connector with color-coded wiring harness
• Latchbolt Shear Strength: 20,000 Pounds
• Strike Keeper: 1/8" , hardened 1018 cold rolled steel, nickel plated, with tamper resistant screws
• UL10B: 1 1/2 hour fire rating

STANDARD COMPLIANCE:

• Security Level:  Maximium

• Fire Rating: UL 10B - 3 Hour

STANDARD FEATURES:

• Latchbolt has full 3/4" throw
• Slam-locking
• Lock status switch indicates latchbolt position
• Keyed one or two sides
• Cylinder Extension provided for locks keyed stop side or two sides
• Security ring, frame welded
• Stainless steel faceplate furnished with tamper resistant screws
• Strike/Pull plate furnished with tamper resistant screws
• Quick connect electrical connector
• Factory wired filed-side pigtail
• Fail-secure (Unlocks when energized)

STANDARD OPERATIONS:

• Latchbolt retracts when momentary signal is applied to the lock and remains retracted for a specified interval, at which time the latchbolt extends allowing door to be slam-locked.
• Lock Status Switch: Indicates latchbolt position
• Key Operated Manual Unlock Feature: Locks are designed to accept builders hardware cylinder to allow manual mechanical unlocking of door by key at the lock.
• Fail Secure: Unlocks when energized.

OPTIONAL FEATURES: (all "fail secure" features)

• RLHB - Remote Latch Holdback: Latchbolt is retracted by push button at the control panel and remains retracted until button is pushed a second time (control feature).
• KS - Key Switch: Door is electrically unlocked by key operated switch at the lock.
• KLHB - Key Operated Mechanical Latch Holdback: Latchbolt is retracted locally by key and remains mechanically retracted until relocked by key.
• ELHB - Emergency Latch Holdback: Latchbolt is retracted from a remote location and remains mechanically retracted until relocked at the door by key (Includes KLHB feature)
• UL - Underwriters Laboratories Inc. Label: U.L. approved electrically controlled single point lock for use on swinging firedoors having a rating up to and including 3 hours.

MANUFACTURED SPECIFICATIONS:

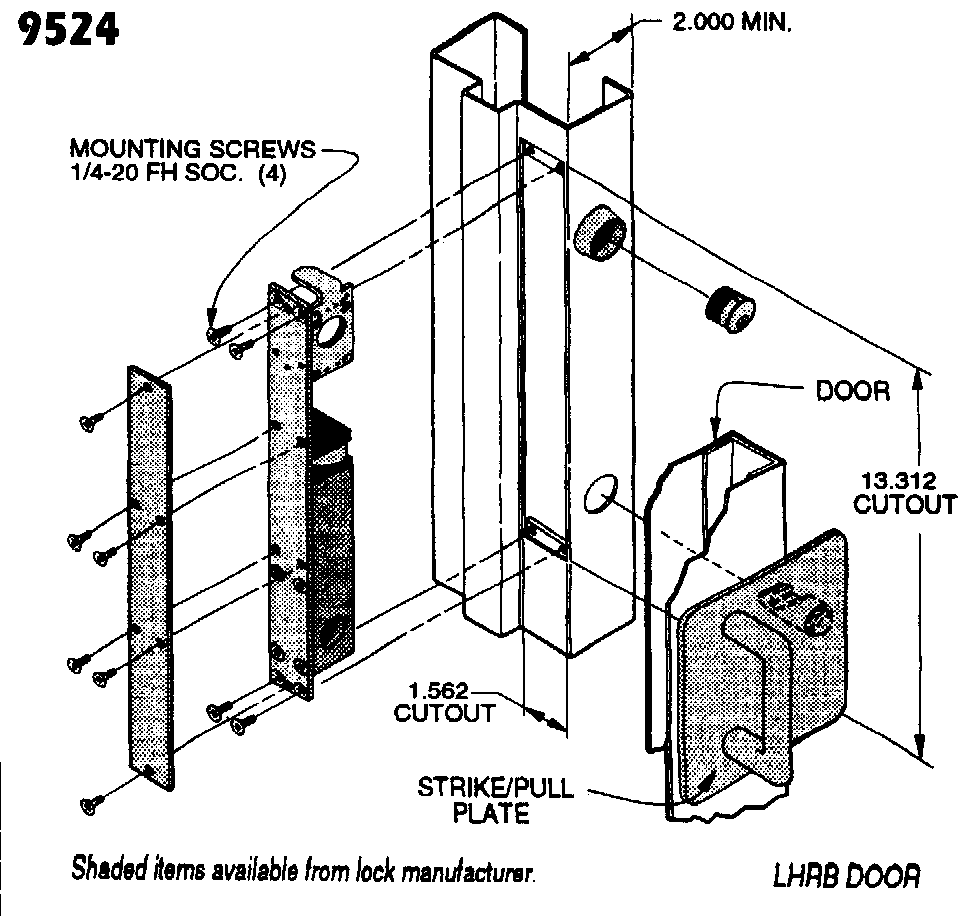

• Body:  All steel construction. Lock dimensions: 1 1/2" x 13 1/4" x 1 3/4"
• Mounting Plate: 1/4", 1018 cold rolled steel, bright zinc plated
• Faceplate: Stainless steel(US32D) with tamper resistant screws
• Latchbolt: 3/4" diameter High strength alloy steel, Chrome plated
• Strikebolt: 1" diameter, high strength alloy steel with anti-friction insert
• Latchbolt Switch: 5 amp rated, UL recognized
• Electrical Power Consumption: 36 watt max. at 24VDC, (1.5amps)
• Operating Range: 24VDC, +25% - 10%
• Motor: 2 phase, bi-polar, brushless linear actuator
• Electrical Connector: Quick connector with color-coded pigtail
• Strike/Pull Plate: 5/16" steel plate, prime painted, with tamper resistant screws
• UL10B: 3 hour fire rated

STANDARD COMPLIANCE:

• Security Level: ASTM F 1577 Grade 1,2

• Fire Rating: UL 10B - 3 Hour

STANDARD FEATURES:

• Latchbolt has full 7/8" throw
• Slam-locking with automatic mechanical deadlock
• Roller-type deadlock actuator
• Lock status switch indicates deadlocked latchbolt
• Mogul key cylinder with 6 pin tumblers
• Keyed one or two sides
• Security ring, frame welded
• Strike/Keeper furnished with tamper resistant screws
• Quick connect electrical connector
• Factory wired filed-side pigtail
• Fail-secure (Unlocks when energized

STANDARD OPERATIONS:

• Latchbolt retracts when momentary signal is applied to the lock and remains retracted for a specified interval, at which time the latchbolt extends allowing door to be closed. Lock automatically deadlocks when door is closed
• When door closes, the lock automatically deadlocks, even in the event of total power loss
• Mogul key cylinder allows for manual operation of all lock functions.

OPTIONAL FEATURES: (all "fail secure" features)

• RLHB - Remote Latch Holdback: Latchbolt is retracted by push button at the control panel and remains retracted until button is pushed a second time (control feature).
• KS - Key Switch: Door is electrically unlocked by key operated switch at the lock.
• KLHB - Key Operated Mechanical Latch Holdback: Latchbolt is retracted locally by key and remains mechanically retracted until relocked by key.
• ELHB - Emergency Latch Holdback: Latchbolt is retracted from a remote location and remains mechanically retracted until relocked at the door by key (Includes KLHB feature)
• RLB - Remote Latch Back: Latchbolt is retracted from a remote location and remains mechanically retracted until door is opened approx. 2". Door relocks automatically when closed.
• KR - Knob Release: Latchbolt is retracted by knob release on one side of lock. Knob is always active. When ordering. Specify hinge side(HS) or stop side(SS)
• UL - Underwriters Laboratories Inc. Label: U.L. approved electrically controlled single point lock for use on swinging firedoors having a rating up to and including 3 hours.
• GR1 - ASTM Grade 1. Rating: Meets ASTM F1577 Grade 1 impact Standards

MANUFACTURED SPECIFICATIONS:

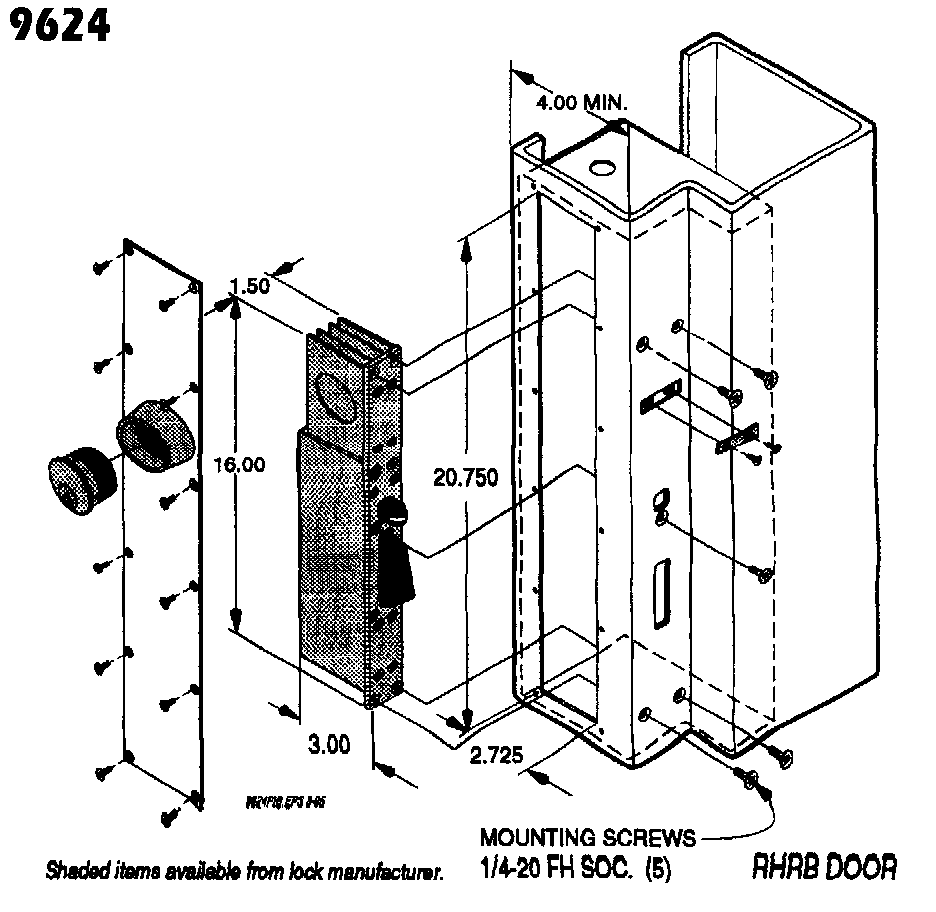

• Body: all steel construction. Lock dimensions: 11/2" x 16" x 3"
• Latchbolt: High strength alloy steel, hardened to RC 60
• Latchbolt Throw: 7/8" - flush when retracted
• Deadlock Actuator: Roller-type, stainless steel
• Lock Status Switch: 5 amp rated, UL recognized
• Electrical Power Consumption: 36 watt max. at 24VDC, (1.5 amps)
• Operating Range: 24VDC, +25% - 10%
• Motor: 2 phase, bi-polar, brushless linear actuator
• Electrical Connector: Quick connector with color-coded wiring harness
• Latchbolt Shear Strength: 40,000 Pounds
• Strike Keeper: 5/8" case hardened 1018 cold rolled steel, nickel plated, with tamper resistant screws
• UL10B: 3 hour fire rating
• ASTM F 1577 Lock Function M200-M24

STANDARD COMPLIANCE:

• Security Level: ASTM F 1577 Grade 1,2

• Fire Rating: UL 10B - 3 Hour

STANDARD FEATURES:

• Latchbolt has full 1" throw
• Slam-locking with automatic mechanical deadlock
• Roller-type deadlock actuator
• Lock status switch indicates deadlocked latchbolt
• Mogul key cylinder with 6pin tumblers
• Keyed one or two sides
• Strike/Keeper furnished with tamper resistant screws
• Quick connect electrical connector
• Factory wired filed-side pigtail
• Fail-secure (Unlocks when energized

STANDARD OPERATIONS:

• Latchbolt retracts when momentary signal is applied to the lock and remains retracted for a specified interval, at which time the latchbolt extends allowing door to be closed. Lock automatically deadlocks when door is closed
• Lock Status Switch: Indicates latchbolt is deadlocked
• Key Operated Manual Unlock Feature: Locks are designed to accept a mogul key cylinder to allow manual mechanical unlocking of door by key at the lock.
• Fail Secure: Unlocks when energized.

OPTIONAL FEATURES: (all "fail secure" features)

• RLHB - Remote Latch Holdback: Latchbolt is retracted by push button at the control panel and remains retracted until button is pushed a second time (control feature).
• KS - Key Switch: Door is electrically unlocked by key operated switch at the lock.
• KLHB - Key Operated Mechanical Latch Holdback: Latchbolt is retracted locally by key and remains mechanically retracted until relocked by key.
• ELHB - Emergency Latch Holdback: Latchbolt is retracted from a remote location and remains mechanically retracted until relocked at the door by key (Includes KLHB feature)
• RLB - Remote Latch Back: Latchbolt is retracted from a remote location and remains mechanically retracted until door is opened approx. 2". Door relocks automatically when closed.
• ADA - Adjustable Deadlock Actuator: Allows for adjustment of roller type deadlock actuator when standard strike/keeper is not used.
• KR - Knob Release: Latchbolt is retracted by knob release on one side of lock. Knob is always active. When ordering. Specify hinge side(HS) or stop side(SS)
• UL - Underwriters Laboratories Inc. Label: U.L. approved electrically controlled single point lock for use on swinging firedoors having a rating up to and including 3 hours.
• GR1 - ASTM Grade 1. Rating: Meets ASTM F1577 Grade 1 impact Standards

MANUFACTURED SPECIFICATIONS:

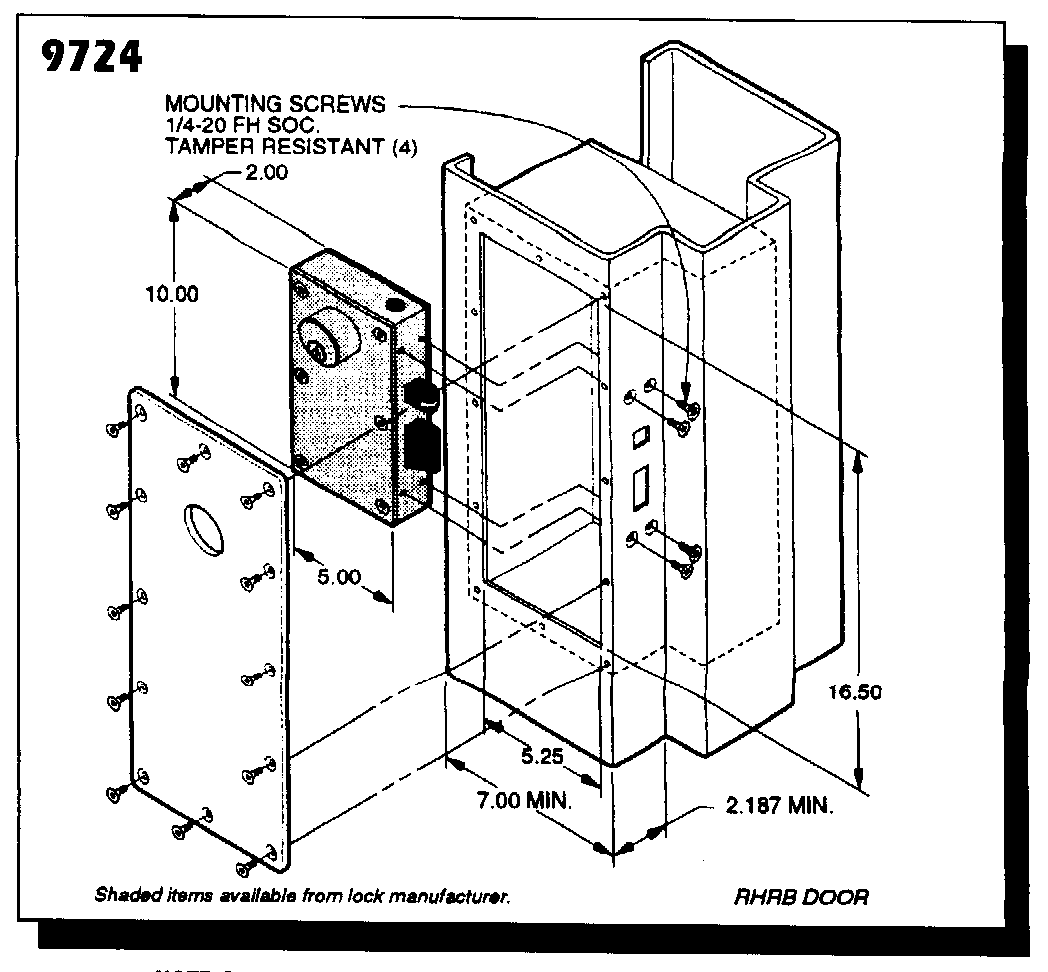

• Body: all steel construction. Lock dimensions: 2" x 10" x 5"
• Latchbolt: 2" x 3/4", high strength alloy steel, hardened to RC 60
• Latchbolt Throw: 1" - flush when retracted
• Deadlock Actuator: Roller-type, stainless steel
• Lock Status Switch: 5 amp rated, UL recognized
• Electrical Power Consumption: 36 watt max. at 24VDC, (1.5 amps)
• Operating Range: 24VDC, +25% - 10%
• Motor: 2 phase, bi-polar, brushless linear actuator
• Electrical Connector: Quick connector with color-coded wiring harness
• Latchbolt Shear Strength: 60,000 Pounds
• Strike Keeper: 1/2" case hardened 1018 cold rolled steel, nickel plated, with tamper resistant screws
• UL10B: 3 hour fire rating
• ASTM F 1577 Lock Function M200-M24

STANDARD COMPLIANCE:

• Security Level: ASTM F 1577 Grade 1,2

• Fire Rating: UL 10B - 3 Hour

STANDARD FEATURES:

• Latchbolt has full 1" throw
• Slam-locking with automatic mechanical deadlock
• Roller-type deadlock actuator
• Lock status switch indicates deadlocked latchbolt
• Paracentric key cylinder with 5 lever tumblers
• Keyed one or two sides
• Strike/Keeper furnished with tamper resistant screws
• Quick connect electrical connector
• Factory wired filed-side pigtail
• Fail-secure (Unlocks when energized

STANDARD OPERATIONS:

• Latchbolt retracts when momentary signal is applied to the lock and remains retracted for a specified interval, at which time the latchbolt extends allowing door to be closed. Lock automatically deadlocks when door is closed
• Lock Status Switch: Indicates latchbolt is deadlocked
• Key Operated Manual Unlock Feature: Locks are designed to accept a paracentric key cylinder to allow manual mechanical unlocking of door by key at the lock.
• Fail Secure: Unlocks when energized.

OPTIONAL FEATURES: (all "fail secure" features)

• RLHB - Remote Latch Holdback: Latchbolt is retracted by push button at the control panel and remains retracted until button is pushed a second time (control feature).
• RLB - Remote Latch Back: Latchbolt is retracted from a remote location and remains mechanically retracted until door is opened approx. 2". Door relocks automatically when closed.
• RMERS - Remote Manual Emergency Release System: Latchbolt is retracted remotely by a manually operated valve in the event of a loss of normal control functions.
• ADA - Adjustable Deadlock Actuator: Allows for adjustment of roller type deadlock actuator when standard strike/keeper is not used.
• UL - Underwriters Laboratories Inc. Label: U.L. approved electrically controlled single point lock for use on swinging firedoors having a rating up to and including 3 hours.
• GR1 - ASTM Grade 1. Rating: Meets ASTM F1577 Grade 1 impact Standards

MANUFACTURED SPECIFICATIONS:

• Body: all steel construction. Lock dimensions: 2" x 10" x 5"
• Latchbolt: 2" x 3/4", high strength alloy steel, hardened to RC 60
• Latchbolt Throw: 1" - flush when retracted
• Deadlock Actuator: Roller-type, stainless steel
• Lock Status Switch: 5 amp rated, UL recognized
• Electrical Power Consumption: 36 watt max. at 24VDC, (1.5 amps)
• Operating Range: 24VDC, +25% - 10%
• Motor: 2 phase, bi-polar, brushless linear actuator
• Electrical Connector: Quick connector with color-coded wiring harness
• Latchbolt Shear Strength: 60,000 Pounds
• Strike Keeper: 1/2" case hardened 1018 cold rolled steel, nickel plated, with tamper resistant screws
• UL10B: 3 hour fire rating
• ASTM F 1577 Lock Function M200-M24
